KGMS Energy Private Limited

Lowers AC electricity bills by up to 40% !

SAVES 25% TO 40% ELECTRICITY

Savings can go up to 60%, depending on the amount of sunlight. When averaged over the year the savings is between 25-40%.
~1100% MORE SPACE EFFICIENT THAN PV PANELS

The HTS Panel takes ~32 sq ft of space, saving ~3,500 watts while a comparative PV Panel will produce just ~300 watts in the same space.
LIFE OF THE HVAC SYSTEM IS IMPROVED

Since the HTS Panel is doing the work of the compressor, it always runs on partial load. This reduced RPM in the long run results in enhanced life of the machine.
5 YEAR WARRANTY

Provided by Perfect Infra engineers on manufacturing defects in the HTS Panel.
ROI OF ~36 MONTHS

While life of Panel is 15+ years.
SUPPORTED BY MOST INDIAN AC MANUFACTURERS

Carrier, Toshiba, Voltas, Blue Star, LG etc have agreed to support the systems where the HTS Panel is used

Single Panel is suitable for 7.5 ton | 10HP | 90,000 BTU | 24,000 Kcal/h | 28Kw of cooling capacity

12% GST and accelerated depreciation for tax benefits

System is scalable to any size HVAC project with variable/inverter compressor ACs (VRF, chiller, ductable or package)

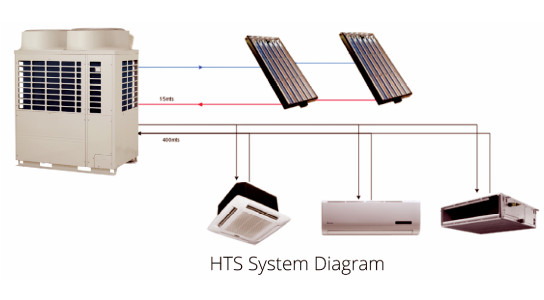

Refrigerant gas with high temperature and pressure leaves the compressor and enters the HTS Panel

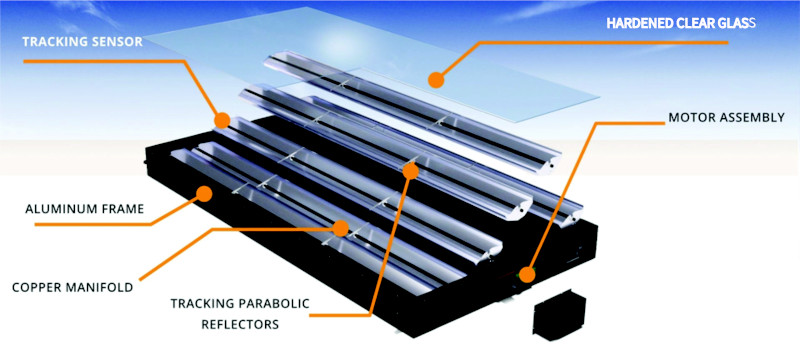

The HTS Panel harnesses the sun’s energy by reflecting the light on parabolic mirrored concentrators. The light is focused on the copper pipes that are coated with specialized absorption paint.
Based on the solar thermal intensity, refrigerant temperature and internal load, the advanced microprocessor decides the modulation of the parabolic reflectors to ensure only adequate heat is added at the most optimum operational point
This further heated refrigerant gas is returned from the panel outlet into the HVAC units condenser
Due to the heat, the compressor needs to do less work in the next cycle, hence it slows down. The reduction in RPM of the compressor correlates with the heat added by the HTS Panel
Hence, by adding heat using the HTS Panel, Perfect can reduce the electricity consumption of any Inverter AC by 25-40%

Rite-Temp (TM) system eliminates stagnation conditions & controls high-temperature limits
Tracks daily east to west & returns to east at the end of day. Tracking controller & brushless
Stepper motor are serviceable through motor cover Designed for 15+ year life
Single-phase input power with < 5 watt consumption
Powder-coated to resist harsh environments
Removable glass top for easy access
Scalable for side-by-side mounting applications
Little to no maintenance cost

Collector Case/Frame	100% Aluminium enclosure; 8011-H14 Aluminium; Size - 8ft x 4ft.
Cover	Hardened clear glass, 4mm thick.
Capacity	One HTS Panel ideal for 7.5 tons / 10 HP / 90,000 BTU of cooling & heating.
Insulation	9mm thick EPDM Insulation.
Weight / Dimensions	Model no. PSP32, 86kg, 100" x 52" x 7"; Reflector area: 8ft x 4ft.
Concentrators	Extruded aluminum reflector; Metalized aluminum foil mirror.
Absorbers	Copper tube: 5/8", 1-1/8"; Black selective paint: absorptivity .92/.96
Sun Trackers	Two shaded phototransistors and brushless stepper motor; 12 vcd, 1.5w
Mounting Provisions	Adjustable stand provided; Recessed lip on frame for clamping.
